MAX 32S

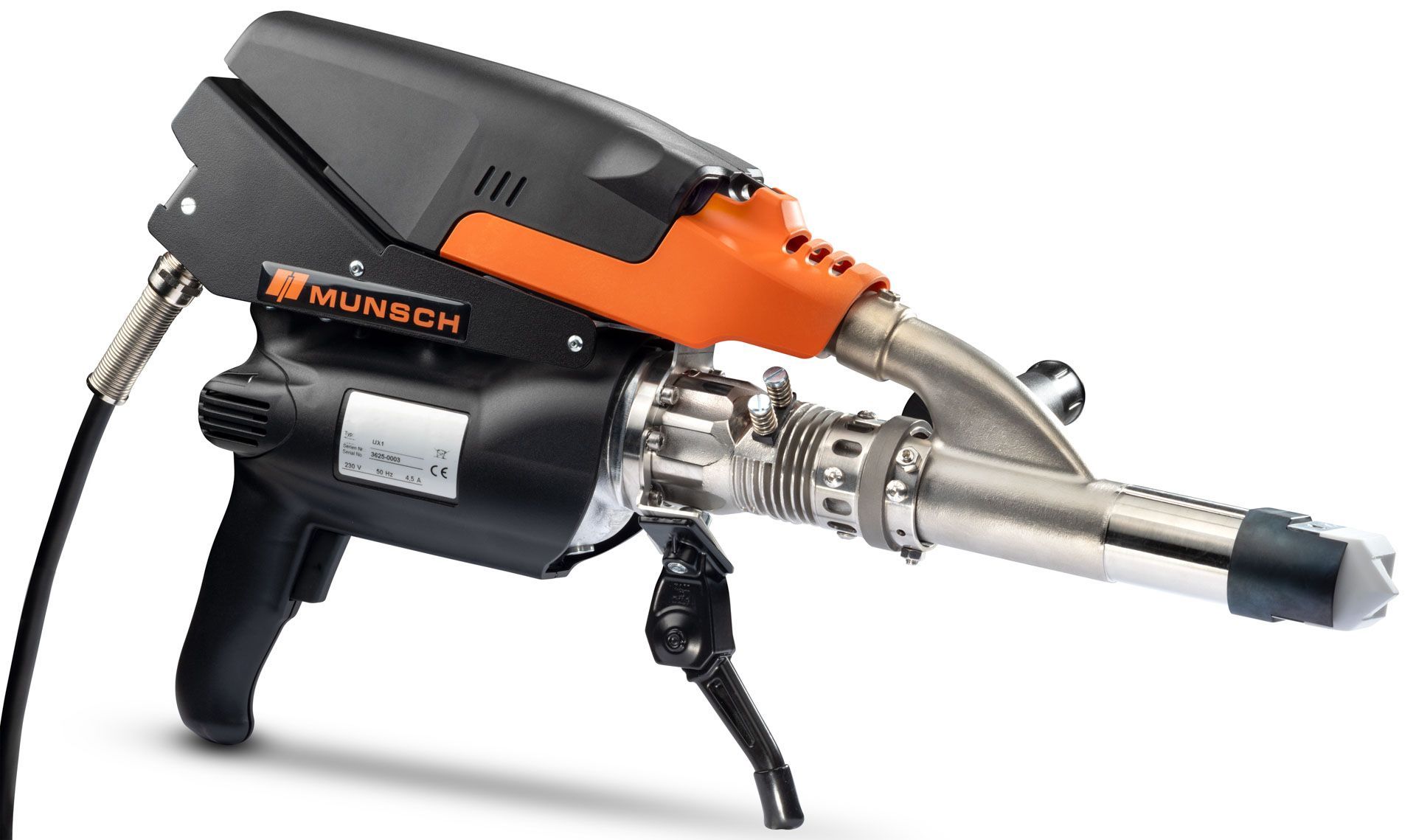

The MAX-32 S is the most powerful extruder in the MUNSCH range, weighing less than 8 kg. With a production rate of up to 3.2 kg/h (using 4 mm wire), it is perfect for projects with medium to high wall thicknesses.
Strong and safe welds
Creates bonds that withstand the test of time, pressure, and temperature. Perfect for repairs, sealing, or projects requiring durability.
Achieve more in less time
Thanks to its power, it allows you to work faster than other manual models, saving hours of work and increasing productivity in the field or workshop.
Portable and practical
Weighing less than 8 kg, it is easy to move and use directly on site, in treatment plants or anywhere plastic repair or assembly is required.
Precise temperature control
It maintains a constant temperature, preventing warping or overheating. The result: uniform, clean, and professional joints.
COMPATIBLE WITH VARIOUS MATERIALS
ENERGY SAVINGS
EASY TO USE
USES AND APPLICATIONS
MORE DETAILS
- Make sure to use welding rod made of the same material as the piece to be joined (PE with PE, PP with PP, etc.).
- Do not work in enclosed spaces without ventilation: hot air can release fumes.
- Keep the nozzle and shoe clean to avoid residue that affects the quality of the joint.
TIPS MAX-32S
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:
- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
