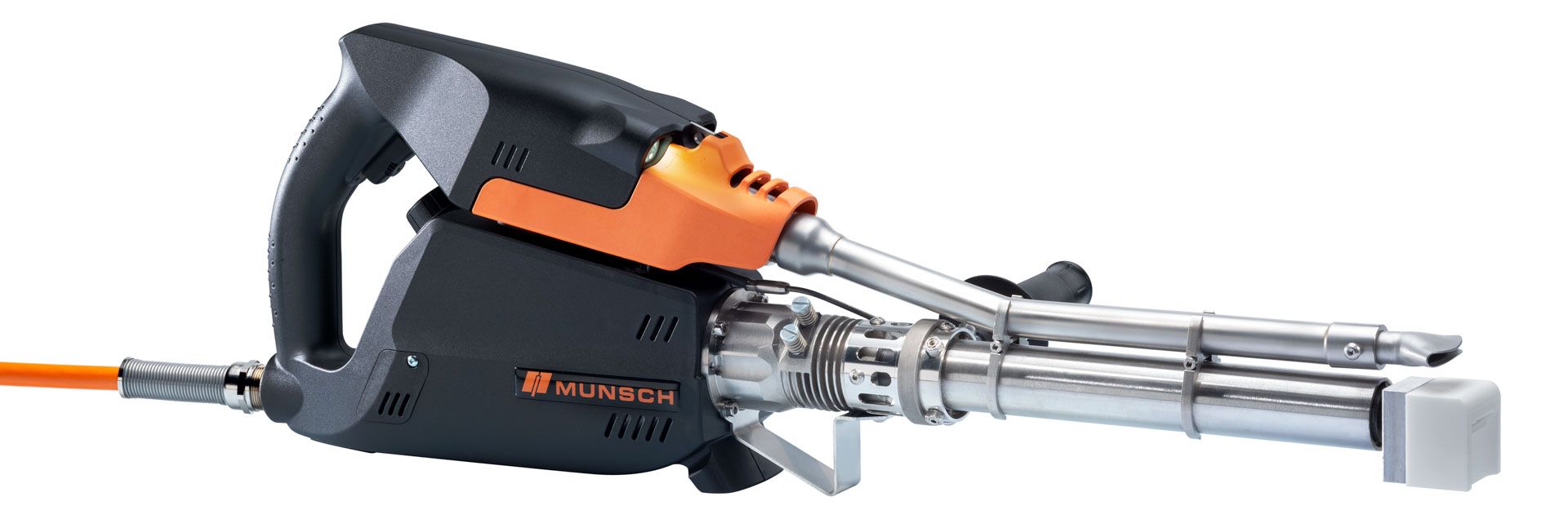

MAX-65
The Max 65 is a high-capacity extruder for welding large volumes of plastic quickly and with maximum strength. Ideal for large-scale industrial projects.
Maximum material supply for enormous structures
This machine is designed for applications where plastic needs to be fused in large quantities and with significant thicknesses. It creates exceptionally strong bonds capable of withstanding pressure, movement, and harsh operating conditions.
Uninterrupted performance in intensive projects
Its motor and thermal control allow you to work long hours without losing power. It maintains a consistent flow so you can work faster and achieve consistent finishes throughout your fabrication or repair work.
Professional finishes with excellent control
You can regulate the temperature independently and precisely, preventing warping or weak joints. Perfect for sectors that demand certified quality in every detail.
Made for industries that cannot stop
Robust construction, high efficiency, and sufficient mobility for operation both in the workshop and on-site. A tool you can rely on in mining, water, sanitation, energy, and more.
VERY HIGH WELDING FLOW
INDEPENDENT TEMPERATURE CONTROL
COMPATIBLE CON PE, PP Y HDPE
USES AND APPLICATIONS
- Use 3 and 4 mm rod
- Quick warm-up to get started without waiting too long
- 360° rotating shoe for welding from any position
- Ergonomic handle that makes long days easier
- Motor with overheat protection
- Heavy-duty reinforced body
- Excellent performance in thick and bulky parts
MORE DETAILS
- Perfect for large industrial manufacturing and repairs
- Reliable results with zero unnecessary rework
- Support and spare parts available in America
- German quality Munsch: proven durability in industry
TIPS MAX-65
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:
- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
