MINI

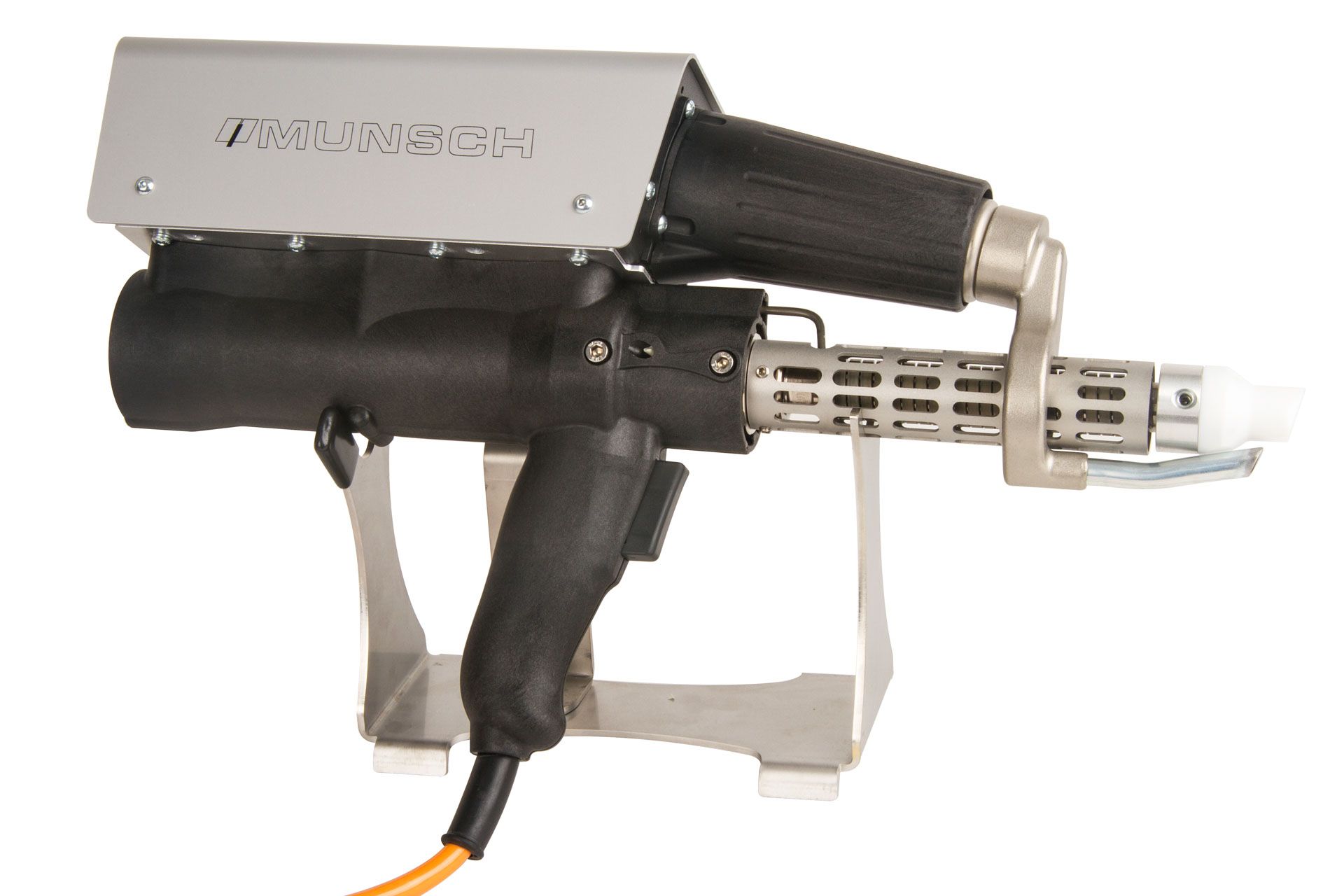

The Munsch Mini is a very compact handheld extruder (only 3.5 kg) for working in small spaces or overhead, ideal for precise repairs in plastics.
Maximum freedom of movement thanks to its lightweight design
Weighing only 3.5 kg, you can handle it with one hand, move freely, and access difficult positions without difficulty. Useful for interventions in narrow or elevated areas.
Great control for perfectly clean results
It features a controllable heating system and a brushless fan that ensures quiet, efficient, and long-lasting operation. This results in clean, precise lacing on materials such as PE, PP, PVDF, and even PFA/ECTFE in the special version.
Designed for a huge variety of materials
Although its size is compact, the Mini is not lacking: it works with common and special materials, making it very versatile for repairs, appliance production, or plastic packaging and containers.
Ideal for maintenance, light manufacturing and hard access
Perfect for both the workshop and on-site technical service. Its carrying case and ergonomic design make it very practical for those who need to be agile and precise.

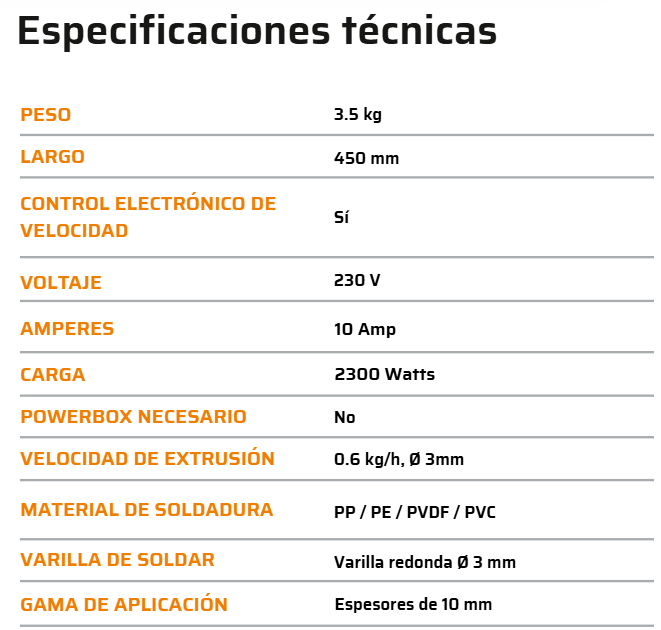

WEIGHT 3.5 Kg
Compatible with 3 mm rod (0.6 kg/h) and wall thickness up to 10 mm
Compatible with PE, PP, PVC-U, PVC-C, PVDF, and special PFA/ECTFE version materials
USES AND APPLICATIONS
- 875W belt heating
- 1600/2300 W preheating fan
- Length: 450 mm
- Easy-to-use menu with 4 material presets memory positions
- Brushless fan for long service life
- Ideal for use in containers, tanks and piping
MORE DETAILS
- Includes carrying case, tool kit and device stand in standard delivery
- Ideally suited for use in maintenance, light production, or quick field repairs
MINI TIPS
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:
- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
