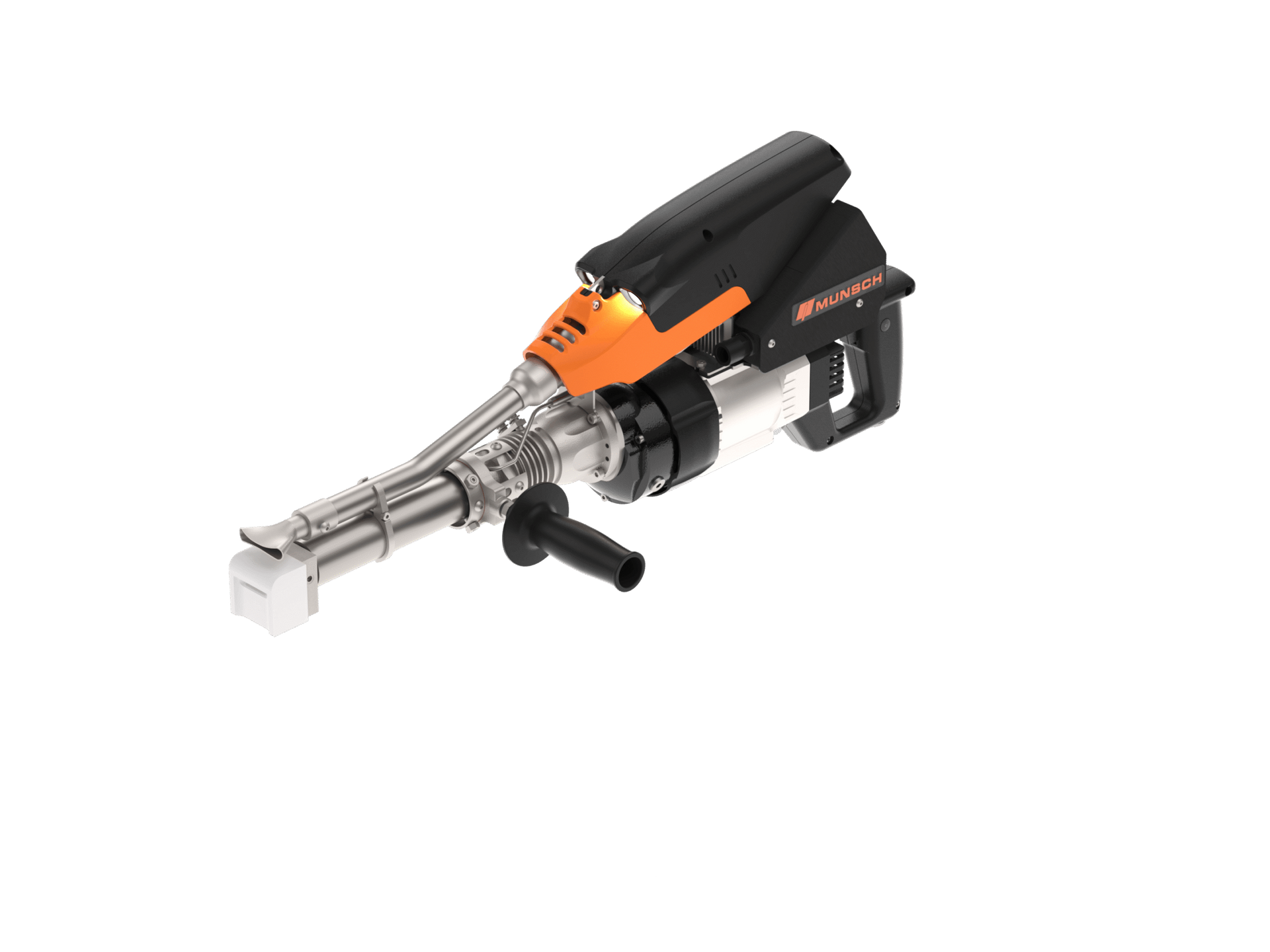

MAX 36 B/D
Total power for big tasks: compact, powerful and reliable.
Highly resistant welds on large parts
The 36 B/D is designed for projects where the materials are thicker and require a greater amount of filler. It delivers a firm, well-fused bead, ideal for structures that must withstand pressure, weight, or constant movement.
Faster work speed to make more progress
Its superior extrusion capacity means you can cover more surface area in less time. This helps complete large installations and repairs without delays or long pauses.
Total control of the process and good finishes
The temperature control is precise and the output flow is stable. This ensures a clean and professional result, reducing the possibility of errors and rework that increase costs.
Works perfectly in the field or workshop
It is a reliable piece of equipment both on-site and in production. The design facilitates continuous handling and is well-suited to jobs where the operator must move or weld in awkward positions.
HIGHER WELDING FLOW
RELIABLE TEMPERATURE CONTROL
COMPATIBLE CON PE, PP Y HDPE
USES AND APPLICATIONS
- For 3 and 4 mm rods
- Fast heating
- 360° adjustable shoe for different positions
- Ergonomic handle that reduces fatigue
- Motor protected against overheating
- Robust construction for everyday industrial use
- Excellent performance in high thicknesses
MORE DETAILS
- Recommended for industrial repair and manufacturing
- Consistent results even on long days
- Spare parts and support available in America
- German technology from Munsch with proven quality
TIPS MAX-36 B/D
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:
- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
