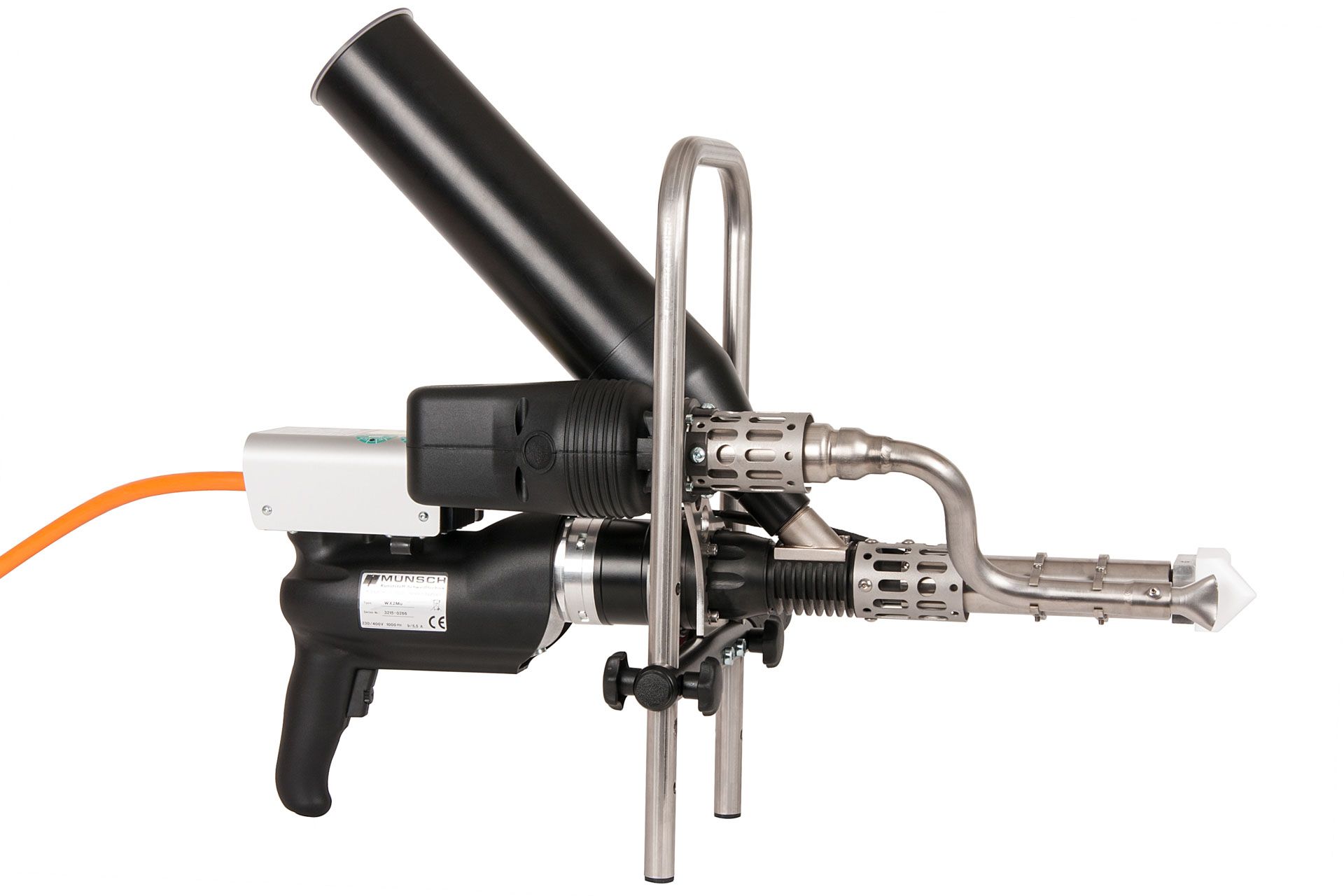

GMAX 350 B/D
It is an extruder designed to weld large quantities of plastic with excellent control and efficiency in construction and industrial processes.
Perfect for demanding thicknesses and high-strength joints
Its extrusion capacity allows the application of the necessary volume of material in each pass, achieving much stronger bonds in parts that must withstand pressure, weight, or continuous movement. A machine ready for demanding industrial applications.
Stable performance that accelerates your production
Designed for long workdays, it maintains a smooth and consistent workflow. This helps you move faster, make better use of your time, and avoid pauses that delay the project.
Professional finishes with precise temperature control
Temperature control is very simple and precise, preventing defects in the weld. The final result is much cleaner, stronger, and has an excellent appearance, even on more complex materials.
Robust and reliable for construction and workshop use
It is well-suited for industrial use, both in the plant and in the field. Its robust and reliable construction makes it ideal for environments where equipment operates under heavy daily stress.
HIGH FLOW WELDING
INDEPENDENT TEMPERATURE CONTROL
COMPATIBLE CON PE, PP Y HDPE
USES AND APPLICATIONS
- Works with 3 and 4 mm rods
- Quick warm-up for immediate start-up
- 360° rotating shoe for various positions
- Ergonomic handle for comfortable operation
- Motor protected against overheating
- Rugged housing for continuous industrial use
- Excellent option for medium and high thicknesses
MORE DETAILS
- Ideal for industrial manufacturing and maintenance
- Consistent results with minimal rework.
TIPS GMAX-350 B/D
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:
- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
