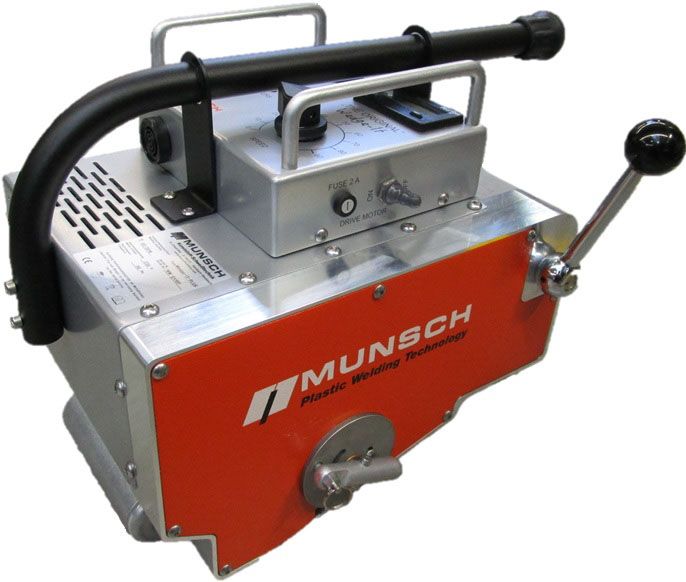

Wedge-It Plus
The Wedge-It Plus is an automatic wedge welding machine for plastic sheets (1.0 to 2.5 mm), designed for large jobs of geomembranes, plastic roofs and industrial linings with speed and precision.
High performance for medium to large sheets
Thanks to its ability to process thicknesses between 1.0 and 2.5 mm and its high thermal output, the Wedge-It Plus allows for faster progress on large surfaces without sacrificing quality.
Robust design and precise adjustments for industrial installation
It features 12 pressure rollers, high heating capacity, and the option to replace the wedge with stainless steel for materials such as PVC, expanding its versatility.
Simple and professional operation for field technicians
All parameters can be pre-configured, its construction is solid and it allows working with 110V or 220V voltages, which facilitates its use on site or in the plant with different power sources.
Ideal for industrial applications where productivity and airtightness are key
Perfect for welding geomembranes, linings, plastic roofs and continuous work that requires reliable, fast and high-quality machines.

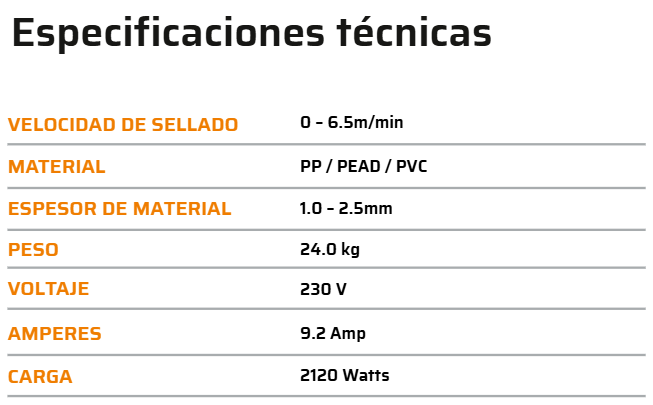

Material thickness: from 1.0 to 2.5 mm
Welding speed: up to 6 m/min
Weight: ~24 kg
USES AND APPLICATIONS
- Power: 2 120 W
- Materials: Compatible with PE-HD, PP and PVC (with stainless steel wedge)
- Equipment length: ~410 mm
- Includes standard carrying case
MORE DETAILS
- Recommended applications: geomembrane construction, plastic roofing, industrial linings where airtightness and resistance are essential
TIPS CUÑA-IT PLUS
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:

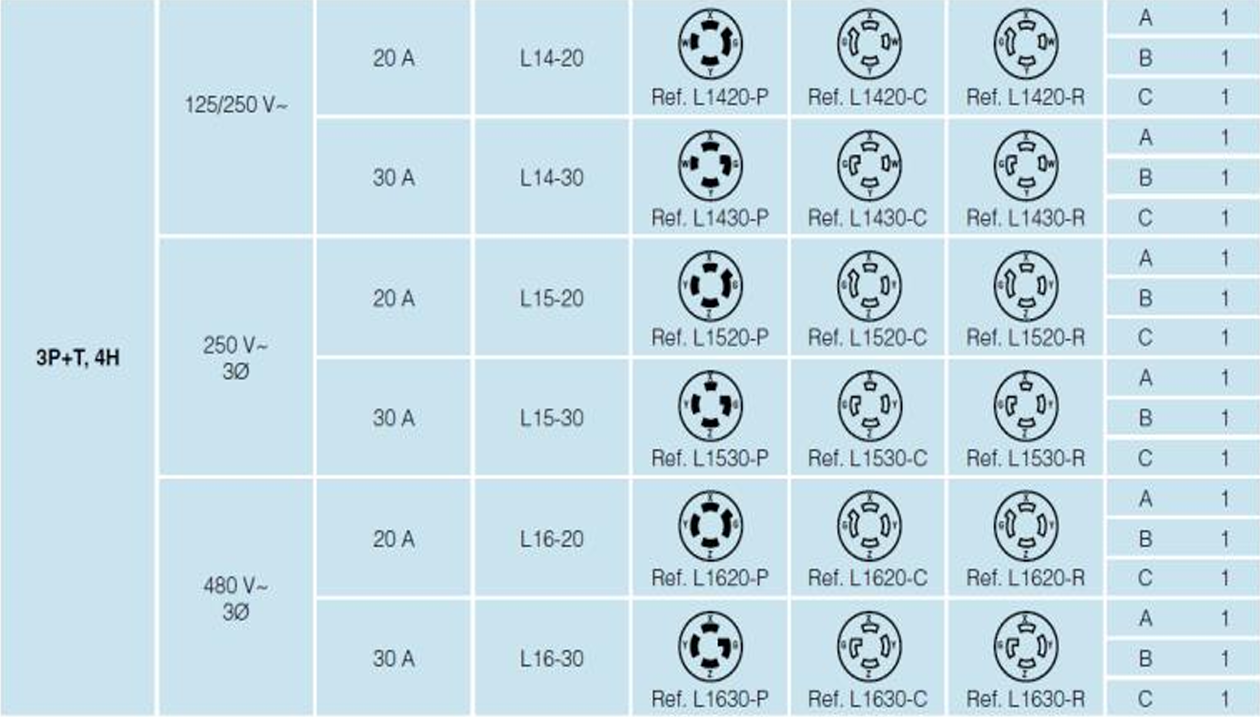

- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.

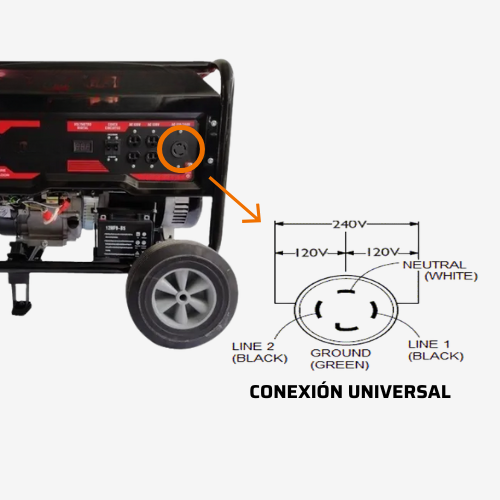

GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.

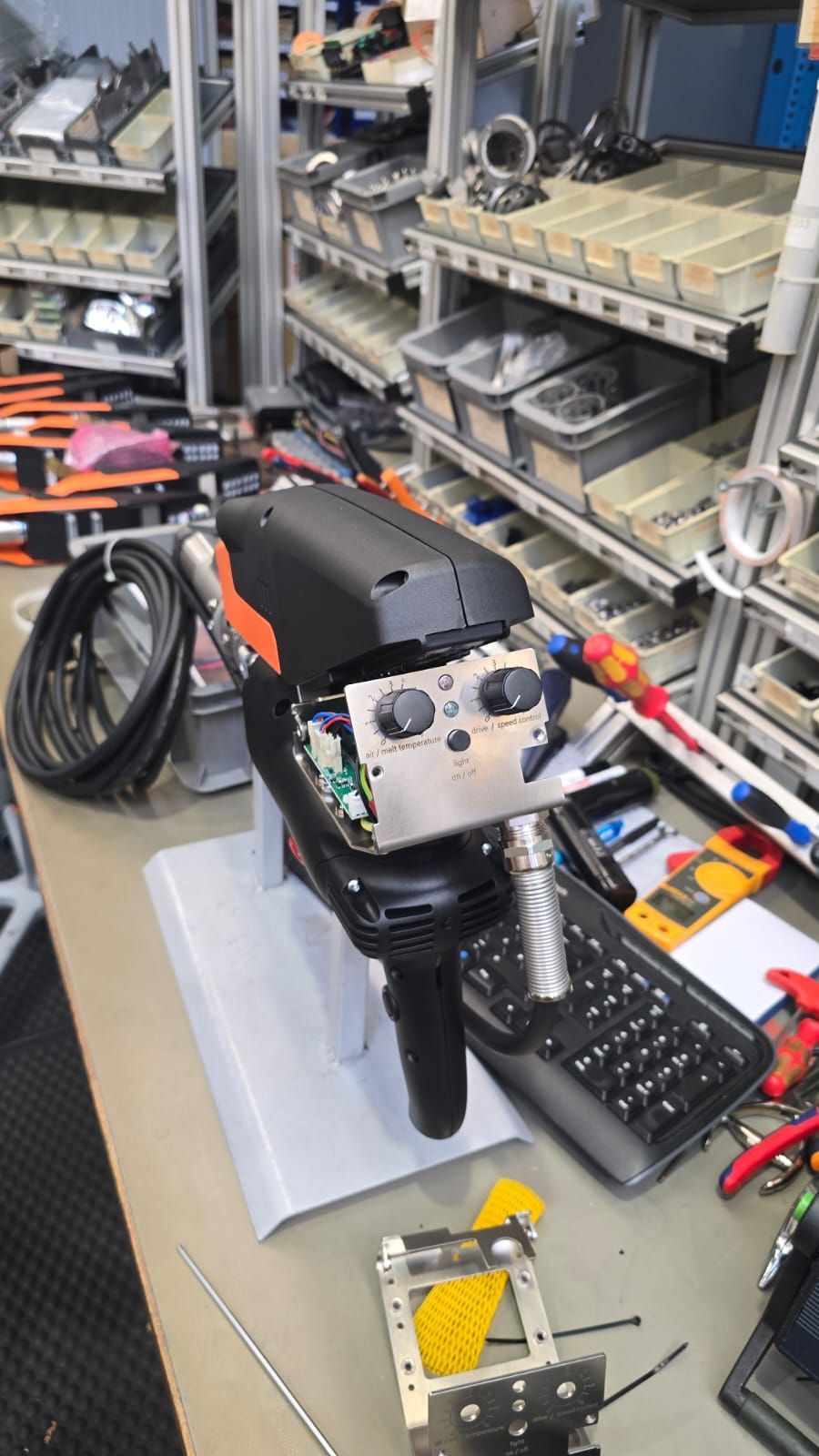

MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
