M2 EXTRUDER
Compact, lightweight, and simple model with an ergonomic design. Ideal for detailed work and repairs on geomembranes.
Strong and durable welds
The M2 bonds plastics such as PE and PP so that the parts are firm, leak-free, and ready to withstand daily use and the demands of industrial work.
Power and performance
Designed to work for hours without losing power or overheating, ideal for large projects or continuous repairs without breaks.
Precision in every application
Designed to maintain stable temperature and material flow, ensuring uniform finishes without bubbles or deformations.
Your joints will be clean, smooth, and professional.
Ideal for repairs or field projects
Weighing approximately 6 kg, it's easy to transport and use directly on-site or in the workshop. Perfect for repairing tanks, pipelines, geomembranes, or machinery parts.
ADJUSTABLE TEMPERATURE
HIGH FLOW WELDING
COMPATIBLE CON PE, PP Y HDPE

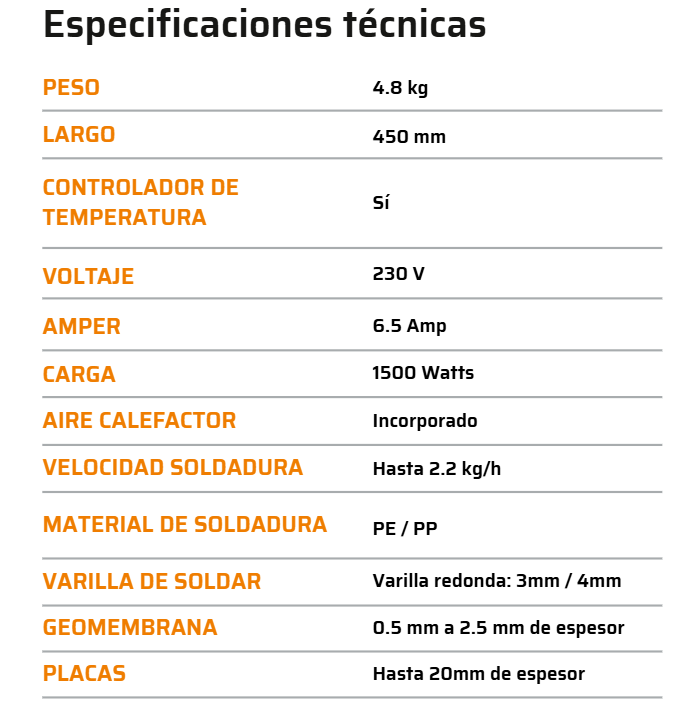

CHARACTERISTICS
- 3 and 4 mm rod
- Warm-up in 10–15 min
- 360° rotating shoe
- Ergonomic handle
- Motor protected against overheating
- Strong and resistant body
MORE DETAILS
- It does not require an additional air supply, it is easy to operate, has an integrated tool holder, and accessible motor brushes.
- Con varilla Ø4 mm: ~4 lbs 14 oz (~2.2 kg/h).
- Recommended wall thickness: ~5 mm to 15 mm (~0.2″-0.59″) for M2.
- Weight: approximately 10 lbs 9.3 oz (~4.8 kg) for the M2.
TIPS M2
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:
- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
