Multi Eco Wedge

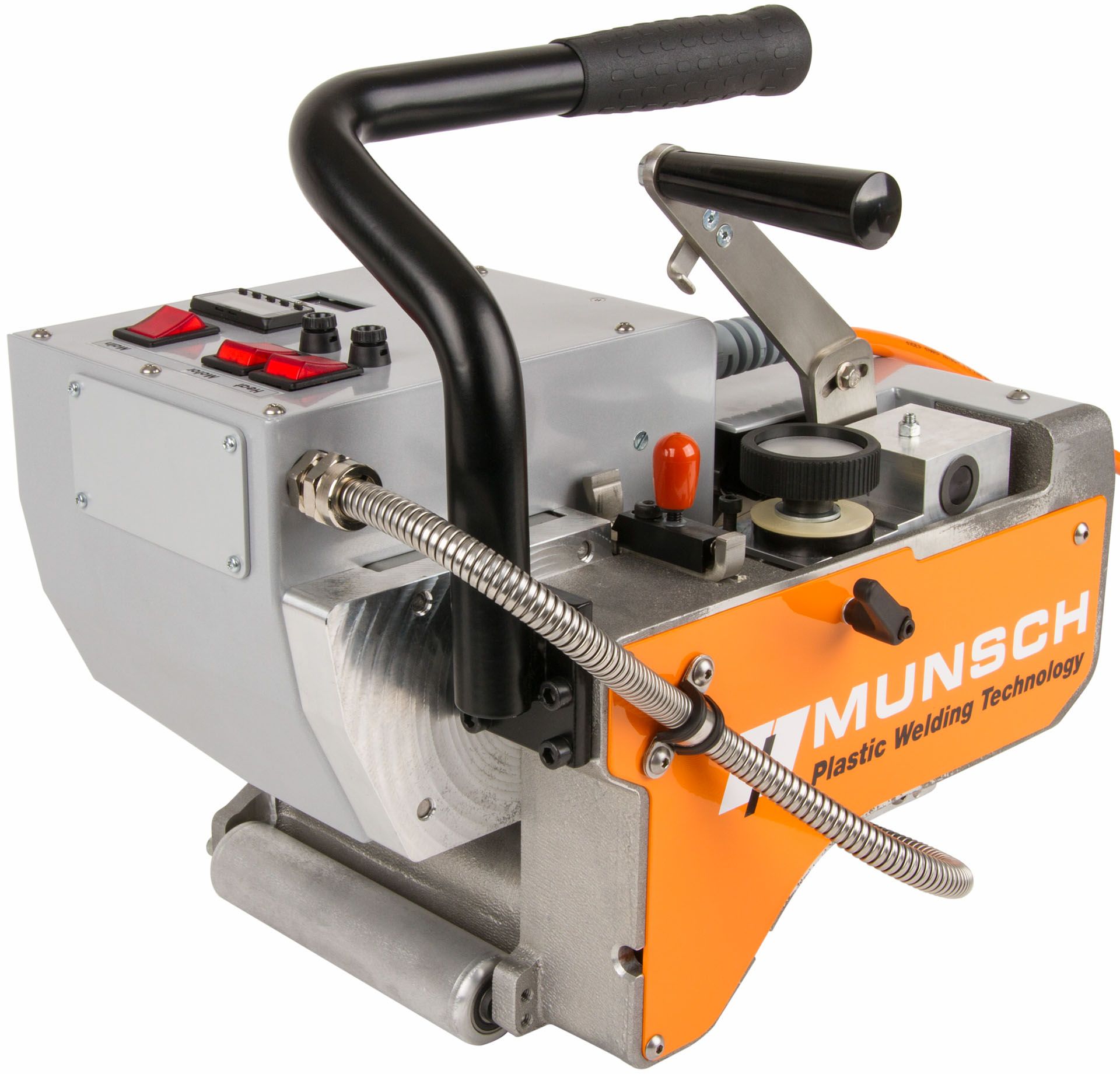

The Wedge-It Multi Eco is an automatic wedge welding machine for thin plastic sheets (1 to 3 mm), ideal for working with geomembranes, containers or plastic roofs with high precision.
Versatility for specialized thin sheets
This model handles sheet thicknesses between 1.0 and 3.0 mm without any problem, making it ideal for applications where fine details or thin layers need to be welded on containers, covers, or geomembranes.
Automated design that makes work easier and improves productivity
It includes automatic drive, spring pressure adjustment, a menu for parameter presets, and the design allows for simple and uniform machine maneuvering, even on complex construction sites.
Welding control and quality thanks to the optimized heating wedge
The heating wedge is made of standard copper and can be changed to stainless steel for PVC, allowing it to adapt to the material correctly and ensuring a good, flawless finish.
Perfect for light industrial environments and precision technical applications
It is not the heaviest or largest machine; it is designed for jobs where accuracy, mobility and finish are key, in industries such as sanitation, membranes, geomembranes, civil engineering.
Material thickness: 1.0 – 3.0 mm
Consumo: 1.500 W
Materials: PE-HD, PP, and with special wedge also PVC
USES AND APPLICATIONS
- Approximate weight: 19 kg
- Length: 370 mm (approx.)
- Welding speed: ~4.3 m/min
- Standard copper heating wedge, convertible to stainless steel for PVC
- Includes carrying case and tool kit in standard delivery
MORE DETAILS
TIPS WEDGE-IT MULTI ECO
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:
- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
