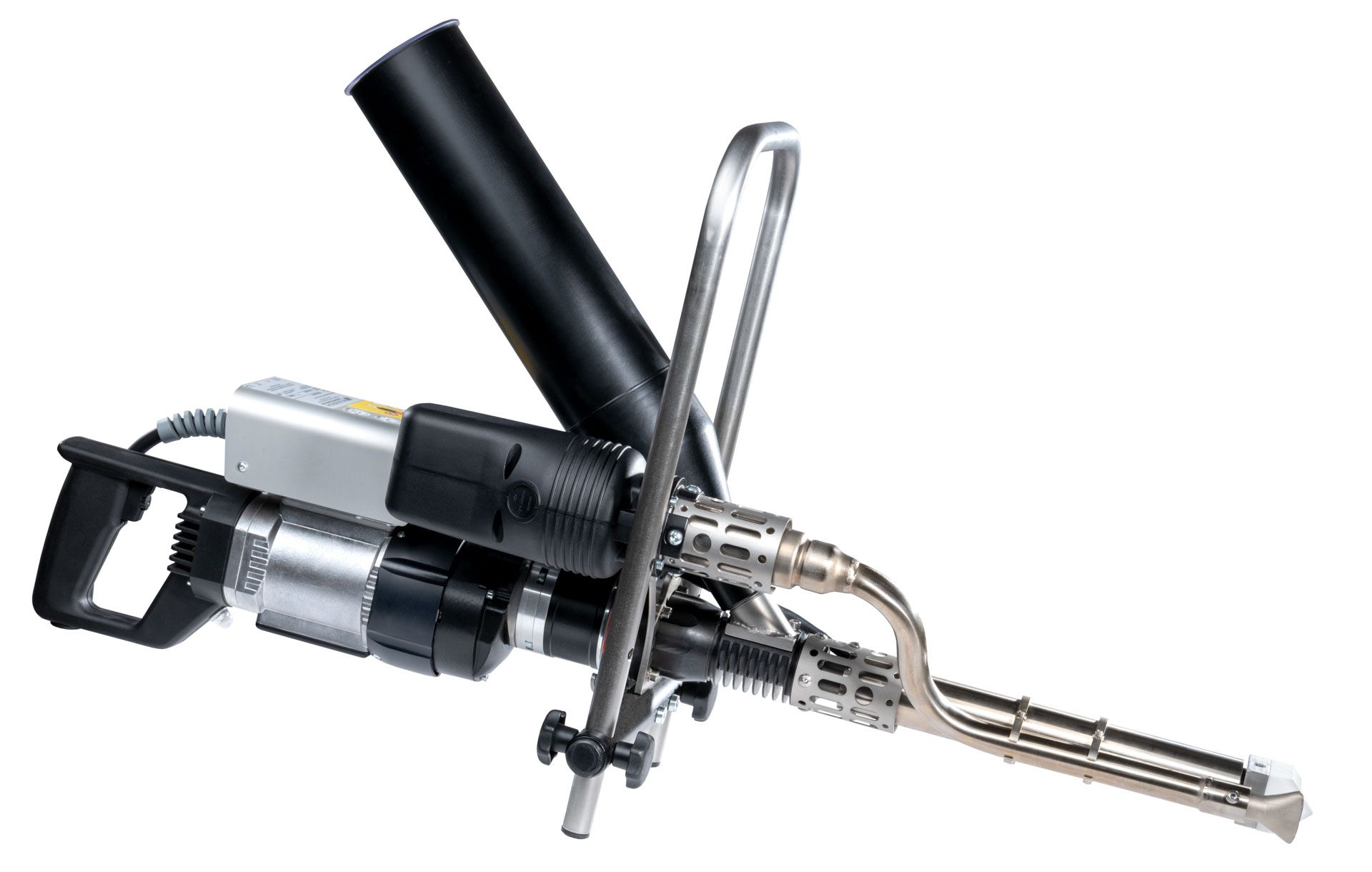

MAX-600 B/D
The MAX 600 B/D is a high-capacity extruder, designed to weld high volumes of plastic quickly and with maximum strength in large-scale industrial projects.
High production for large plastic structures
Its high material content allows for welding pieces with significant thicknesses and achieving extremely strong joints. It is ideal for installations and manufacturing processes where strength is paramount.
Consistent performance during long workdays
The motor and thermal control operate reliably, preventing stoppages and maintaining a consistent welding flow. More progress is made, and every hour of work is used more efficiently.
Precise welding control for better finishes
Adjusting the temperature is very simple and precise, preventing errors that cause leaks, rework, or weak joints. The final finish is much cleaner and more professional.
Designed for industries that demand extreme durability
Perfect for sectors such as mining, water, sanitation, energy, containers, and geomembranes. A tool built for harsh environments and continuous projects.
HIGH FLOW WELDING
INDEPENDENT AND PRECISE TEMPERATURE CONTROL
COMPATIBLE CON PE, PP Y HDPE
USES AND APPLICATIONS
- Use 3 and 4 mm rod
- Fast heating to start welding soon
- 360° rotating shoe to adapt to any position
- Ergonomic handle to reduce fatigue during use
- Motor protected against overheating
- Robust construction for heavy-duty work
- Excellent performance on large parts and high thicknesses
MORE DETAILS
- Ideal for large-scale manufacturing and repairs
- Consistent results with minimal need for corrections
TIPS MAX-600 B/D
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:
- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
