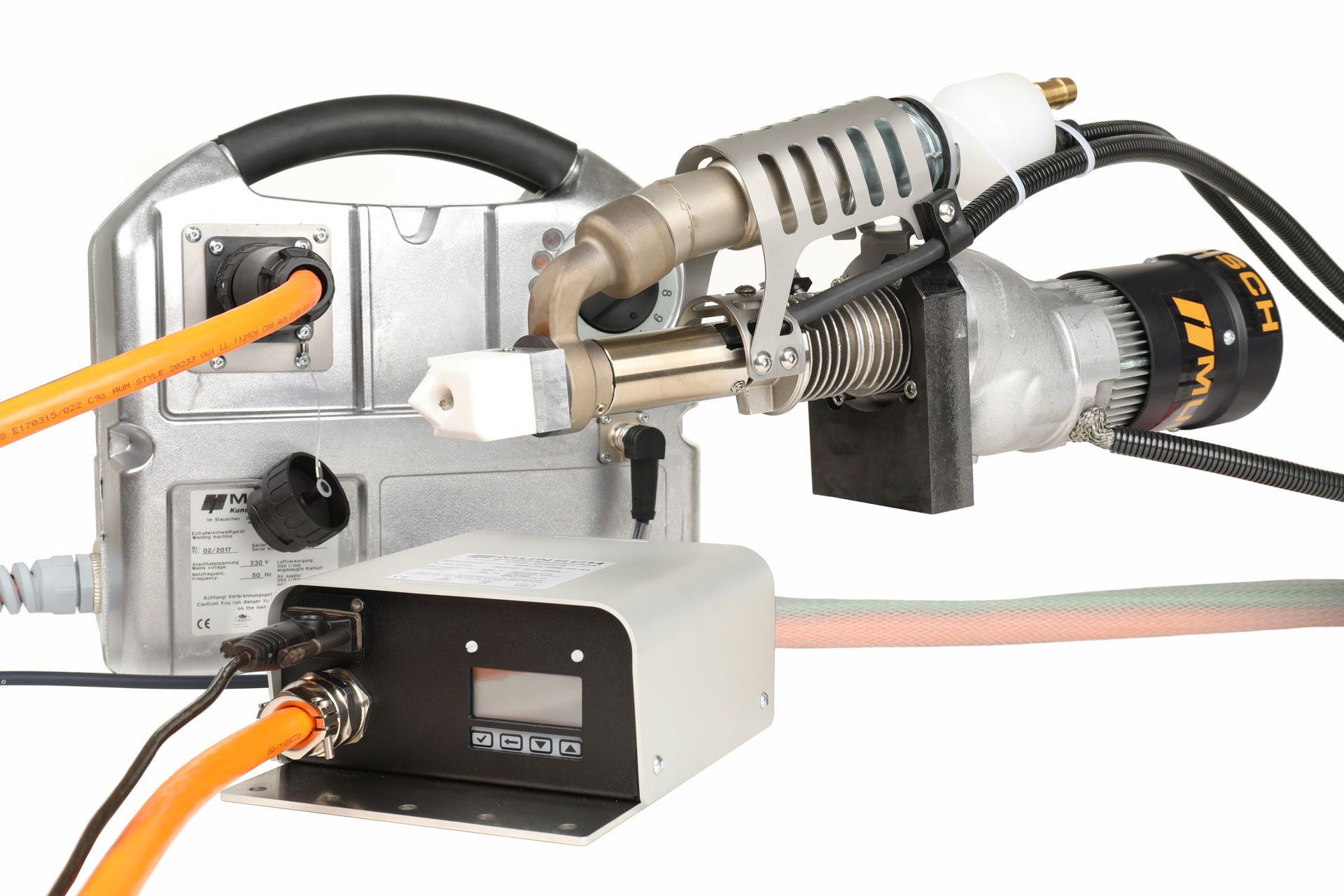

ROB EXTRUDER
It is a portable extruder designed for on-site work, where plastics need to be welded quickly, precisely and with excellent mobility.
Designed to reach difficult places
Very compact and lightweight, ideal for working in tight or hard-to-reach areas. The operator can easily control the position and weld precisely where needed without complicated maneuvers.
Strong welds in less time
It offers a constant flow of material to expedite repairs and installations. This helps reduce downtime and achieve strong bonds without the need for bulky equipment.
Simple control for clean finishes
The temperature control is precise and easy to use, resulting in a uniform and well-finished cord. It reduces errors, saves material, and ensures a perfect finish from the first pass.
Full mobility for installation and maintenance
Perfect for technicians who need to move around a lot in the field. Rob can withstand the rigors of hard work and maintains a soldier's stability during long shifts.
PORTABLE AND LIGHTWEIGHT
PRECISE TEMPERATURE CONTROL
SUITABLE FOR PE, PP AND HDPE
USES AND APPLICATIONS
- For 3 and 4 mm rods
- Quick warm-up to get started without waiting
- 360° adjustable shoe for different positions
- Ergonomic handle for continuous use
- Motor protected against overheating
- Rugged design for industrial conditions
- Excellent for light and medium thicknesses
MORE DETAILS
- Ideal for quick repairs on pipes and plastic parts
- Stable performance in construction and industrial maintenance
TIPS ROB
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:
- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
