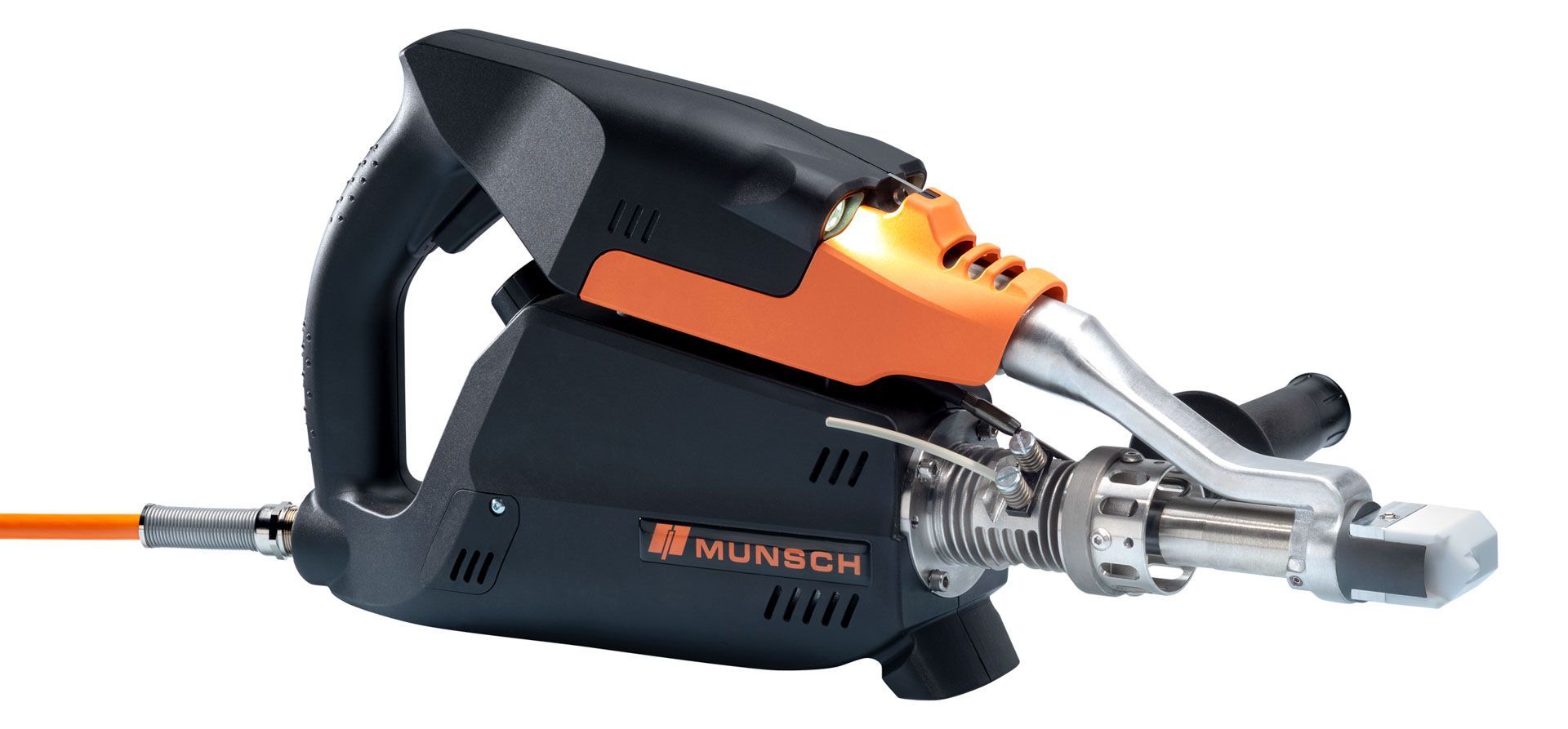

MAX 25
The Max 25 offers more power without sacrificing maneuverability. Ideal for medium to large jobs where more welding material needs to be applied.
Greater material supply for stronger joints
Its extrusion capacity is superior to that of smaller machines, allowing for the welding of thicker pieces with excellent strength. Perfect for structures requiring maximum durability.
It works for hours without losing stability.
It maintains a constant flow and a well-controlled temperature, which helps to achieve even and professional laces even on projects that take all day.
More precision without the hassle
The controls are simple and straightforward. You set the temperature and you're done. This reduces errors, improves the final finish, and gives you more confidence when working on critical parts.
For construction or workshop use, depending on your needs
It is an extruder robust enough for industrial production, but also convenient to transport for installation and maintenance directly to the work site.
High welding flux
Independent temperature control
Suitable for PE, PP AND HDPE
USES AND APPLICATIONS
- 3 and 4 mm rod
- Fast heating
- 360° Adjustable Shoe
- Ergonomic handle for better grip
- Thermal protection in motor
- Heavy-duty industrial construction
- Ideal for medium and high thicknesses
MORE DETAILS
- Designed for manufacturing and repair in industry
- Consistent results even on demanding days
- Spare parts and support available in America
- German technology with a great reputation in plastic welding
TIPS MAX-25
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:

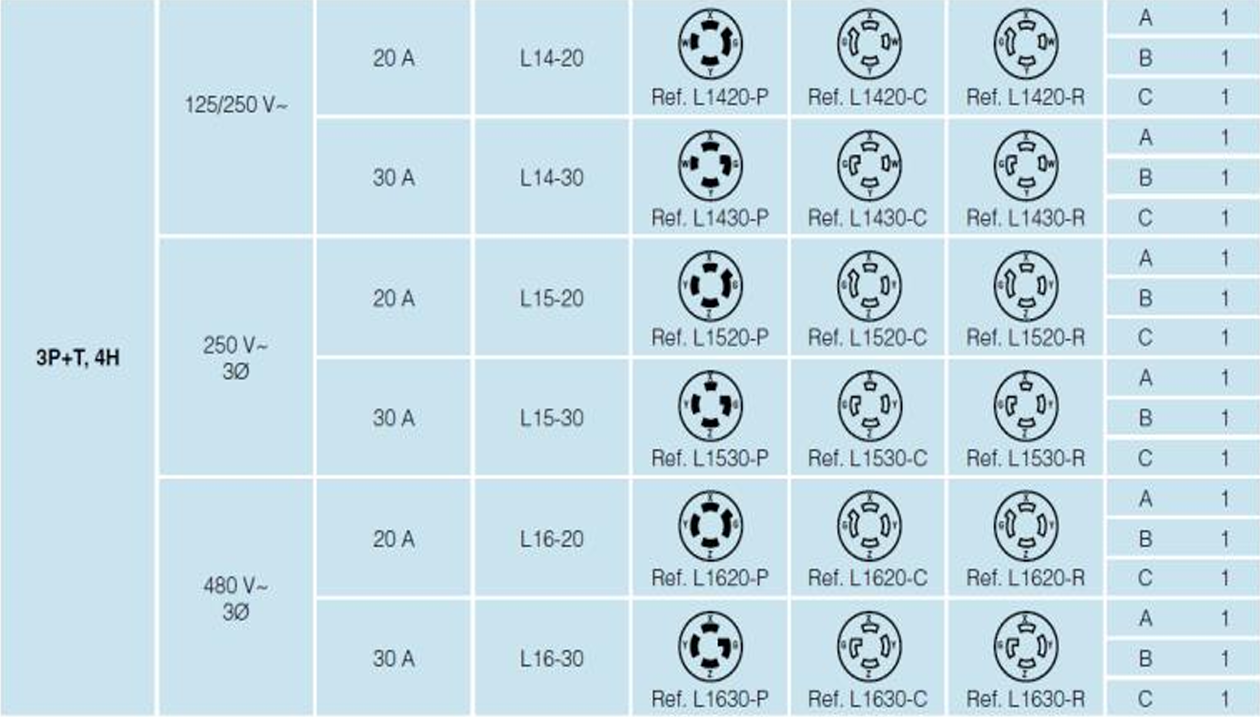

- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION

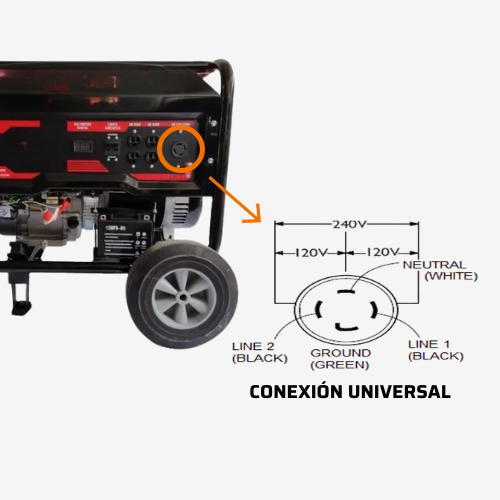

In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
